Escalator
Product Description(Click on the download specific document)
Minastar fuji of escalator products, in strict accordance with iso9001:2008 standard production, ensure the high quality of products. Escalator has two kinds of point of view for the user to choose, 35 degrees of escalator for you save floor space, 30 degrees of escalator to provide you with a better ride comfort. Apply to shopping malls, large supermarket, subway, airport traffic, the flow of the construction of a bright scenery for you.
Product Specification

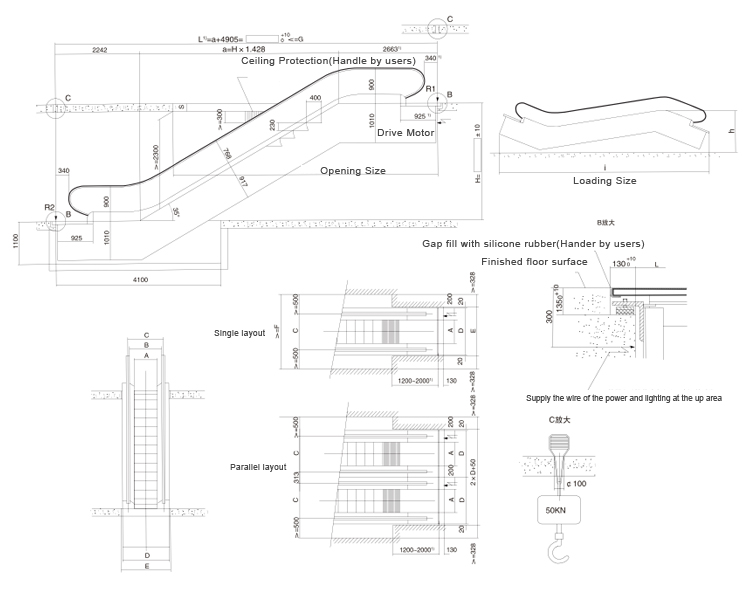

Escalator 30°
| Model | Travelling Height | Weight | Support Load | Power kw |
Transport Demension | ||
| R1 | R2 | ||||||
| MST-E-30-600K4500 | H | KN | KN | KN | v=0.5m/s | H | I |
| 3000 | 57 | 46 | 41 | 5.5 | 2172 | 11177 | |
| 3500 | 60 | 49 | 44 | 2217 | 12165 | ||
| 4000 | 63 | 52 | 47 | 2254 | 13155 | ||
| 4500 | 67 | 56 | 50 | 2284 | 14146 | ||
| 5000 | 70 | 59 | 53 | 8 | 2309 | 15138 | |
| 5500 | 74 | 62 | 56 | 2330 | 16131 | ||
| 6000 | 77 | 65 | 59 | 2348 | 17125 | ||
| MST-E-30-800K6750 | 3000 | 59 | 52 | 47 | 5.5 | 2066 | 10788 |
| 3500 | 63 | 56 | 50 | 2101 | 11778 | ||
| 4000 | 67 | 60 | 54 | 8 | 2130 | 12769 | |
| 4500 | 70 | 64 | 57 | 2153 | 13762 | ||
| 5000 | 74 | 68 | 60 | 2172 | 14755 | ||
| 5500 | 78 | 74 | 66 | 11 | 2188 | 15750 | |
| 6000 | 81 | 78 | 69 | 2201 | 16745 | ||
| MST-E-30-1000K9000 | 3000 | 63 | 59 | 53 | 8 | 2066 | 10788 |
| 3500 | 67 | 64 | 57 | 2101 | 11778 | ||
| 4000 | 71 | 68 | 61 | 2130 | 12769 | ||
| 4500 | 75 | 73 | 65 | 2153 | 13762 | ||
| 5000 | 79 | 79 | 71 | 11 | 2172 | 14755 | |
| 5500 | 83 | 84 | 75 | 2188 | 15750 | ||
| 6000 | 86 | 88 | 79 | 2201 | 16745 | ||

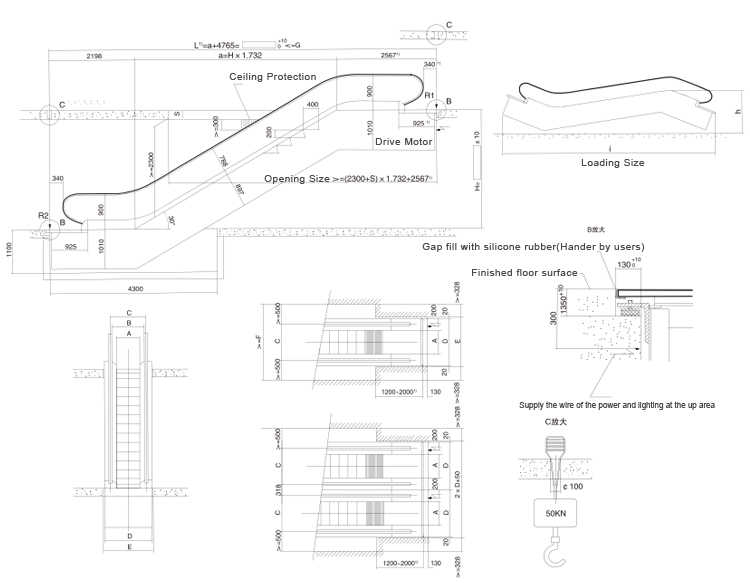

Escalator 35°
| Model | Travelling Height | Weight? | Support Load | Power kw |
Transport Demension | ||
| R1 | R2 | ||||||
| MST-E-35-600K4500 | 3000 | 54 | 43 | 39 | 5.5 | 2291 | 10458 |
| 3500 | 57 | 46 | 41 | 2345 | 11309 | ||
| 4000 | 60 | 49 | 44 | 2389 | 12163 | ||
| 4500 | 64 | 52 | 46 | 2425 | 13019 | ||
| 5000 | 67 | 54 | 49 | 2456 | 13877 | ||
| 5500 | 70 | 57 | 51 | 8 | 2481 | 14737 | |
| 6000 | 73 | 60 | 54 | 2503 | 15598 | ||
| MST-E-35-800K6750 | 3000 | 56 | 49 | 44 | 5.5 | 2177 | 10073 |
| 3500 | 60 | 52 | 47 | 2219 | 10926 | ||
| 4000 | 63 | 56 | 50 | 8 | 2253 | 11782 | |
| 4500 | 66 | 59 | 53 | 2281 | 12640 | ||
| 5000 | 70 | 62 | 56 | 2304 | 13500 | ||
| 5500 | 73 | 65 | 59 | 2324 | 14362 | ||
| 6000 | 76 | 69 | 61 | 11 | 2340 | 15224 | |
| MST-E-35-1000K9000 | 3000 | 60 | 56 | 50 | 5.5 | 2177 | 10073 |
| 3500 | 64 | 60 | 53 | 8 | 2219 | 10926 | |
| 4000 | 67 | 64 | 57 | 2253 | 11782 | ||
| 4500 | 71 | 67 | 60 | 2281 | 12640 | ||
| 5000 | 74 | 71 | 67 | 11 | 2304 | 13500 | |
| 5500 | 78 | 77 | 69 | 2324 | 14362 | ||
| 6000 | 82 | 81 | 72 | 2340 | 15224 | ||
