Home Elevator
Product Description(Click on the download specific document)

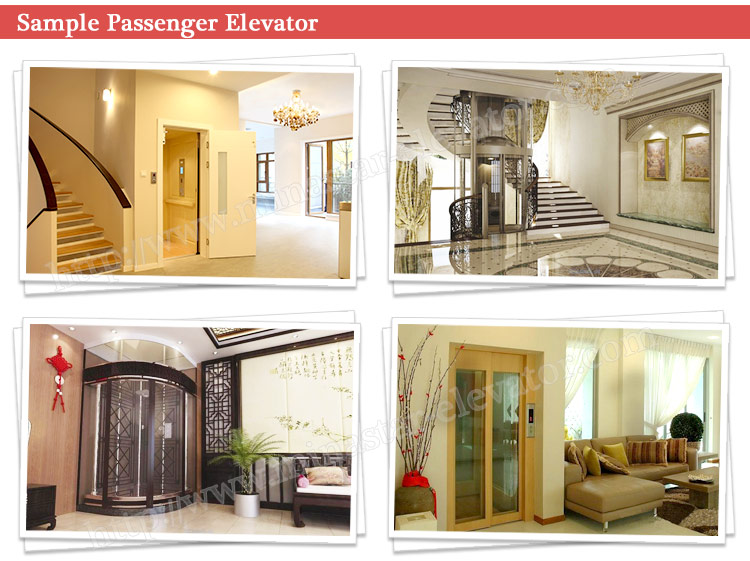

Minastar fuji home elevator, according to the structure design of household elevator family life, on the design of the humanized more meet the needs of families, small, convenient, safe and reliable. Mainly suitable for villa, double entry building, etc.

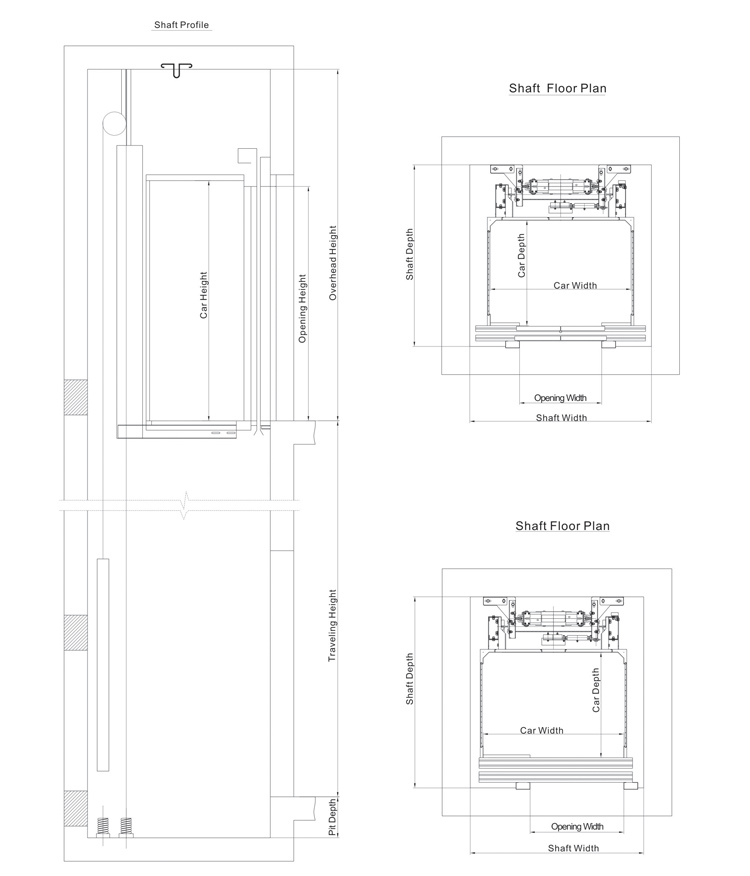

Product Specification
| Model | Load Kg |
Speed m/s |
Pers | Car Size (mm) CW×CD×HK |
Opening Size(mm) PL×LH |
Shaft Size(mm) SW×SD |
Overhead Hight H2 mm |
Pit Depth H1 mm |
Travelling Height H mm |
| MST-H-320/0.4 | 320 | 0.4 | 4 | 900×1200×2150 | 700×2000 | 1600×1500 | 3300 | 900 | 12 |
| MST-H-320/0.4 | 320 | 0.4 | 4 | 900×1200×2150 | 800×2000 | 1600×1550 | 3300 | 900 | 12 |
| MST-H-400/0.4 | 400 | 0.4 | 5 | 900×1200×2150 | 700×2000 | 1600×1500 | 3300 | 900 | 12 |
| MST-H-400/0.4 | 400 | 0.4 | 5 | 900×1200×2150 | 800×2000 | 1600×1550 | 3300 | 900 | 12 |
