Cargo Elevator
Product Description(Click on the download specific document)

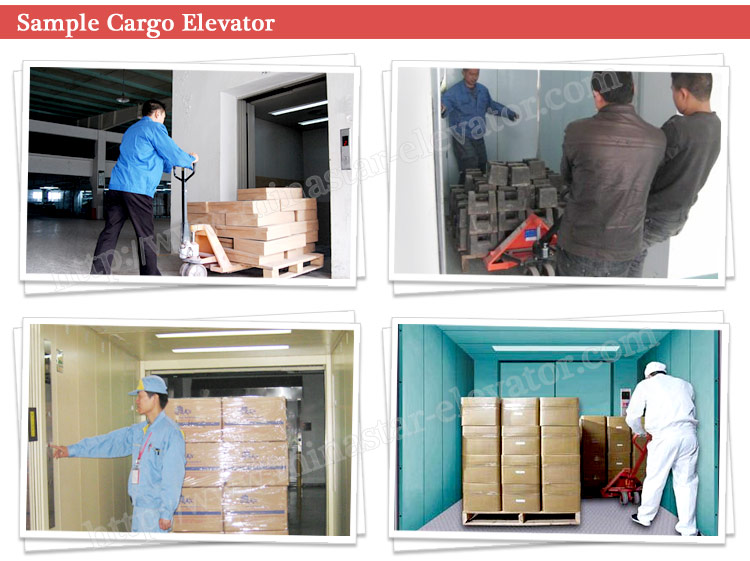

Minastar fuji cargo elevator series, high strength of the structure design, safe and reliable, stable operation. Meet the needs of the customer's cargo. Apply to office buildings, supermarkets, shopping malls, factories and other places.
Product Specification
| Model | Load Kg |
Speed m/s |
Car Size (mm) CW×CD×HK |
Opening Size(mm) PL×LH |

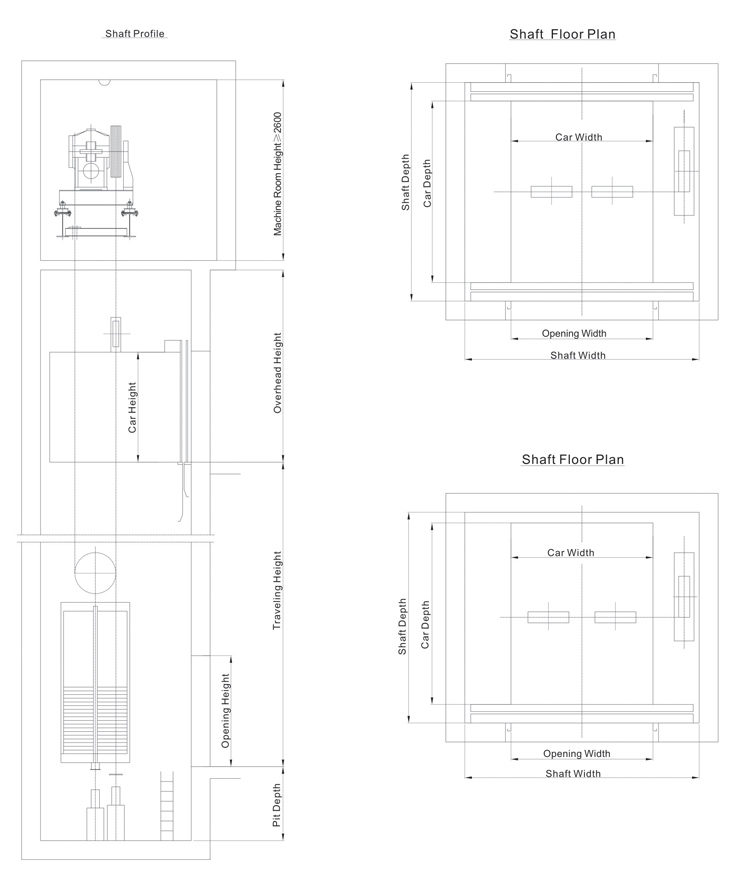

Opening Type | Shaft Size(mm) SW×SD |
Overhead Hight H2 mm |
Pit Depth H1 mm |
|
| MST-C-1000/0.5 | 1000 | 0.5 | 1400×1600×2200 | 1400×2200 | Center opening Four Panels | 2450×2000 | 4200 | 1450 | |
| MST-C-1000/0.5 | 1000 | 0.5 | 1400×1600×2200 | 1400×2200 | Four Panels Opposite Side | 2450×2070 | 4200 | 1450 | |
| MST-C-2000/0.5 | 2000 | 0.5 | 1800×2300×2200 | 1800×2200 | Center opening Four Panels | 3000×2700 | 4200 | 1450 | |
| MST-C-2000/0.5 | 2000 | 0.5 | 1800×2300×2200 | 1800×2200 | Four Panels Opposite Side | 3000×2770 | 4200 | 1450 | |
| MST-C-3000/0.5 | 3000 | 0.5 | 2200×2600×2200 | 2200×2200 | Center opening Four Panels | 3600×3000 | 4200 | 1450 | |
| MST-C-3000/0.5 | 3000 | 0.5 | 2200×2600×2200 | 2200×2200 | Four Panels Opposite Side | 3600×3070 | 4200 | 1450 | |
| MST-C-4000/0.5 | 4000 | 0.5 | 2400×2900×2200 | 2400×2200 | Center opening Four Panels | 3800×3370 | 4200 | 1450 | |
| MST-C-4000/0.5 | 4000 | 0.5 | 2400×2900×2200 | 2400×2200 | Four Panels Opposite Side | 3800×3370 | 4200 | 1450 | |
| MST-C-5000/0.5 | 5000 | 0.5 | 2500×3500×2200 | 2400×2200 | Center opening Four Panels | 4000×4000 | 4200 | 1450 | |
| MST-C-5000/0.5 | 5000 | 0.5 | 2500×3500×2200 | 2400×2200 | Four Panels Opposite Side | 4000×3970 | 4200 | 1450 | |
