Panoramic Elevator
Product Description(Click on the download specific document)

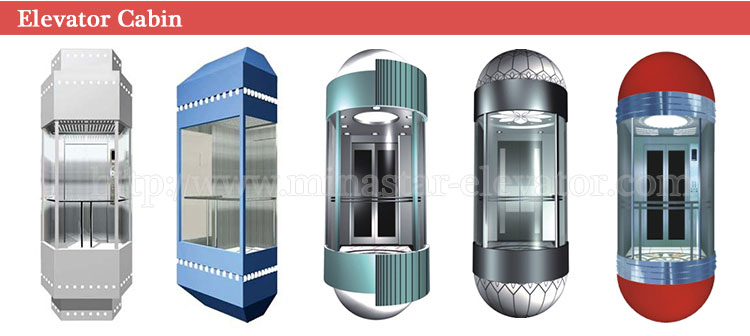

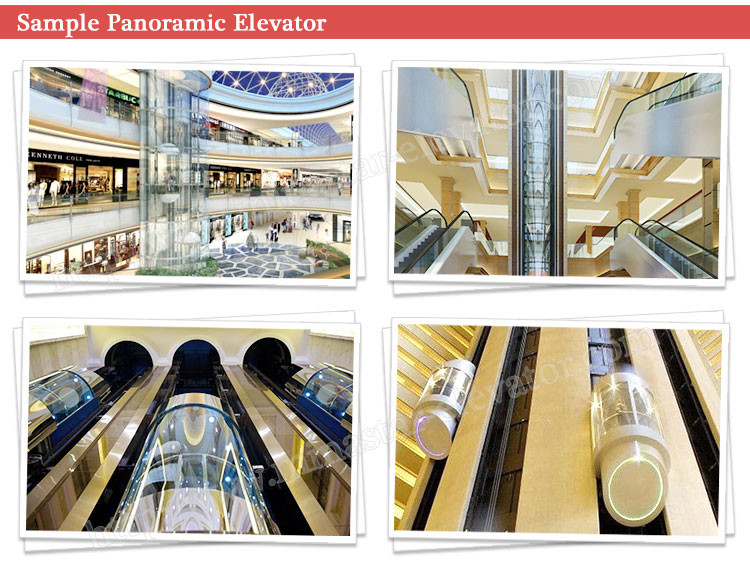

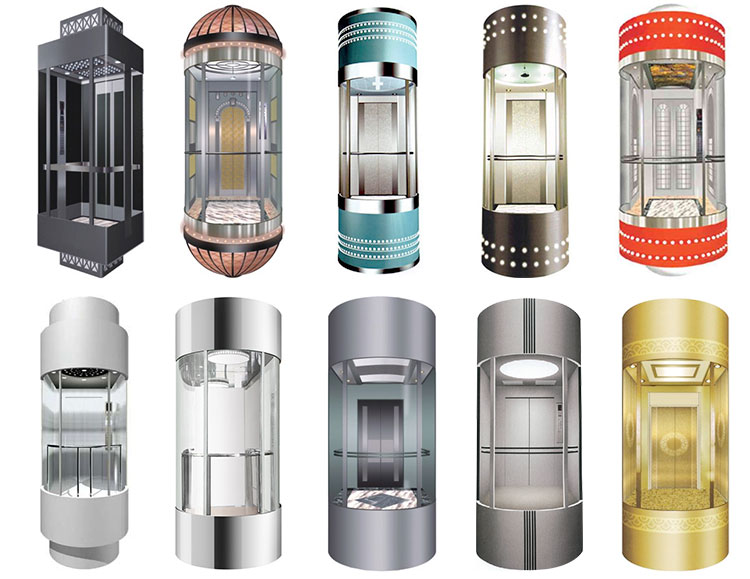

Minastar fuji sightseeing ladder series, the customer can see the beautiful city scenery, when in suitable for hotel, office and other important public buildings, etc.
Product Specification
| Model | Load Kg |
Speed m/s |
Pers | Car Size (mm) CW×CD×HK |
Opening Size(mm) PL×LH |

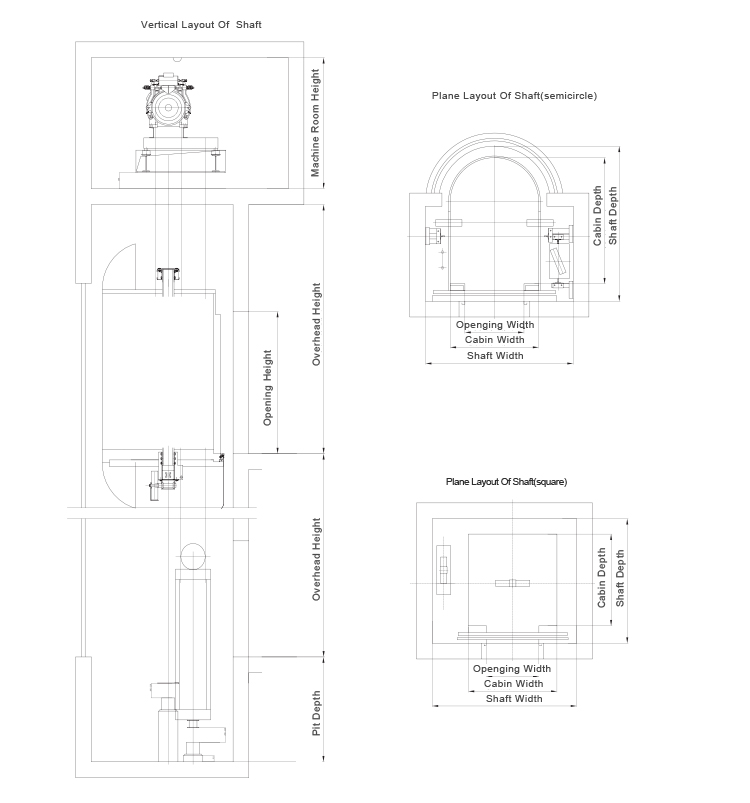

Shaft Size(mm) SW×SD |
Overhead Hight H2 mm |
Pit Depth H1 mm |
Travelling Height H mm |
| MST-G-630/1.0 | 630 | 1 | 8 | 1200×1550×2400(round) | 800×2100 | 2050×2000 | 4400 | 1600 | 50 |
| MST-G-630/1.5 | 630 | 1.5 | 8 | 1200×1550×2400(round) | 800×2100 | 2050×2000 | 4500 | 1700 | 75 |
| MST-G-630/1.75 | 630 | 1.75 | 8 | 1200×1550×2400(round) | 800×2100 | 2050×2000 | 4500 | 1700 | 85 |
| MST-G-630/1.0 | 630 | 1 | 8 | 1350×1200×2400(square) | 800×2100 | 2200×1700 | 4400 | 1600 | 50 |
| MST-G-630/1.5 | 630 | 1.5 | 8 | 1350×1200×2400(square) | 800×2100 | 2200×1700 | 4500 | 1700 | 75 |
| MST-G-630/1.75 | 630 | 1.75 | 8 | 1350×1200×2400(square) | 800×2100 | 2200×1700 | 4500 | 1700 | 85 |
| MST-G-800/1.0 | 800 | 1 | 10 | 1200×1750×2400(round) | 800×2100 | 2050×2200 | 4400 | 1600 | 50 |
| MST-G-800/1.5 | 800 | 1.5 | 10 | 1200×1750×2400(round) | 800×2100 | 2050×2200 | 4500 | 1700 | 75 |
| MST-G-800/1.75 | 800 | 1.75 | 10 | 1200×1750×2400(round) | 800×2100 | 2050×2200 | 4500 | 1700 | 85 |
| MST-G-800/1.0 | 800 | 1 | 10 | 1350×1400×2400(square) | 800×2100 | 2200×1900 | 4400 | 1600 | 50 |
| MST-G-800/1.5 | 800 | 1.5 | 10 | 1350×1400×2400(square) | 800×2100 | 2200×1900 | 4500 | 1700 | 75 |
| MST-G-800/1.75 | 800 | 1.75 | 10 | 1350×1400×2400(square) | 800×2100 | 2200×1900 | 4500 | 1700 | 85 |
| MST-G-1000/1.0 | 1000 | 1 | 13 | 1350×1925×2400(round) | 900×2100 | 2250×2365 | 4400 | 1600 | 50 |
| MST-G-1000/1.5 | 1000 | 1.5 | 13 | 1350×1925×2400(round) | 900×2100 | 2250×2365 | 4500 | 1700 | 75 |
| MST-G-1000/1.75 | 1000 | 1.75 | 13 | 1350×1925×2400(round) | 900×2100 | 2250×2365 | 4500 | 1700 | 85 |
| MST-G-1000/1.0 | 1000 | 1 | 13 | 1600×1400×2400(square) | 900×2100 | 2450×1900 | 4400 | 1600 | 50 |
| MST-G-1000/1.5 | 1000 | 1.5 | 13 | 1600×1400×2400(square) | 900×2100 | 2450×1900 | 4500 | 1700 | 75 |
| MST-G-1000/1.75 | 1000 | 1.75 | 13 | 1600×1400×2400(square) | 900×2100 | 2450×1900 | 4500 | 1700 | 85 |
| MST-G-1350/1.0 | 1250 | 1 | 16 | 1550×2025×2400(round) | 900×2100 | 2450×2465 | 4400 | 1600 | 50 |
| MST-G-1350/1.5 | 1250 | 1.5 | 16 | 1550×2025×2400(round) | 900×2100 | 2450×2465 | 4500 | 1700 | 75 |
| MST-G-1350/1.75 | 1250 | 1.75 | 16 | 1550×2025×2400(round) | 900×2100 | 2450×2465 | 4500 | 1700 | 85 |
| MST-G-1350/1.0 | 1250 | 1 | 16 | 1700×1700×2400(square) | 900×2100 | 2550×2200 | 4400 | 1600 | 50 |
| MST-G-1350/1.5 | 1250 | 1.5 | 16 | 1700×1700×2400(square) | 900×2100 | 2550×2200 | 4500 | 1700 | 75 |
| MST-G-1350/1.75 | 1250 | 1.75 | 16 | 1700×1700×2400(square) | 900×2100 | 2550×2200 | 4500 | 1700 | 85 |
