Passenger Elevator

Product Description(Click on the download specific document)

Minastar fuji passenger elevator series, delicate capsules, smooth operation, built a comfortable space for customers to take. Mainly suitable for hotels, restaurants, office buildings, commerce-residence building, entertainment centers, shopping malls, etc.

Product Specification

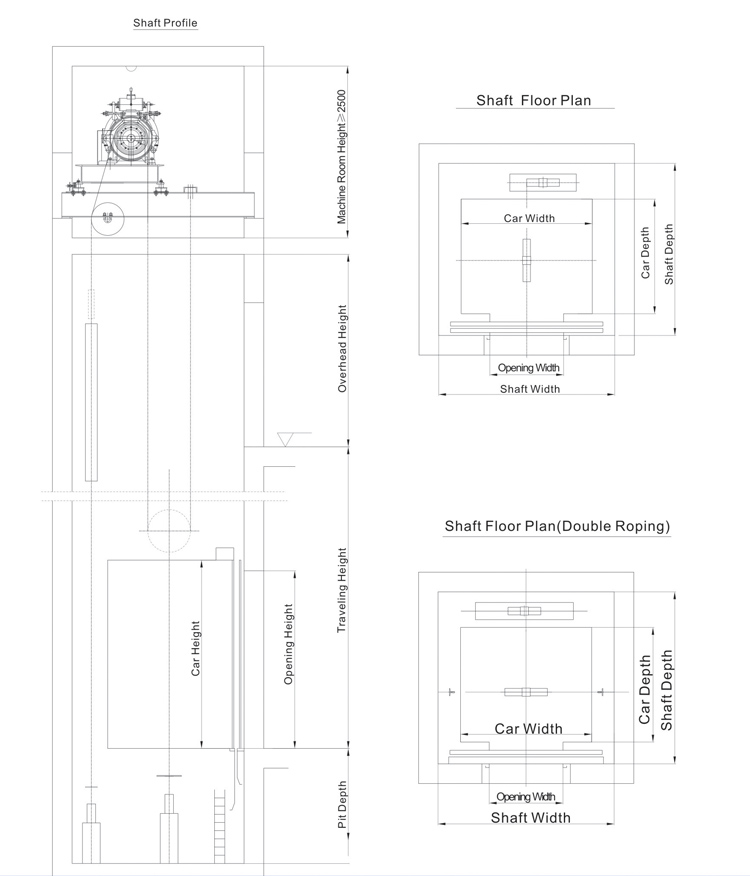

Passenger Elevator parameters (machine room)



Model Load
Kg		 Speed
m/s		 Pers Car Size (mm)
CW×CD×HK		 Opening Size(mm)
PL×LH		 Shaft Size(mm)
SW×SD		 Machine Room Size(mm)
W×D		 Overhead Hight H2
mm		 Pit Depth H1
mm		 Travelling Height H
mm
MST-P-MR450/1.0 450 1 6 1250×1000×2400 700×2100 1750×1650 1900×2100 4300 1500 50
MST-P-MR450/1.5 450 1.5 6 1250×1000×2400 700×2100 1750×1650 1900×2100 4400 1500 75
MST-P-MR450/1.75 450 1.75 6 1250×1000×2400 700×2100 1750×1650 1900×2100 4400 1500 85
MST-P-MR630/1.0 630 1 8 1100×1400×2400 800×2100 1800×2100 1900×2100 4300 1500 50
MST-P-MR630/1.5 630 1.5 8 1100×1400×2400 800×2100 1800×2100 1900×2100 4400 1500 75
MST-P-MR630/1.75 630 1.75 8 1100×1400×2400 800×2100 1800×2100 1900×2100 4400 1500 85
MST-P-MR800/1.0 800 1 10 1350×1400×2400 800×2100 1900×2100 1900×2100 4300 1500 50
MST-P-MR800/1.5 800 1.5 10 1350×1400×2400 800×2100 1900×2100 1900×2100 4400 1500 75
MST-P-MR800/1.75 800 1.75 10 1350×1400×2400 800×2100 1900×2100 1900×2100 4400 1500 85
MST-P-MR1000/1.0 1000 1 13 1600×1400×2400 900×2100 2150×2100 2150×2100 4300 1500 50
MST-P-MR1000/1.5 1000 1.5 13 1600×1400×2400 900×2100 2150×2100 2150×2100 4400 1500 75
MST-P-MR1000/1.75 1000 1.75 13 1600×1400×2400 900×2100 2150×2100 2150×2100 4400 1500 85
MST-P-MR1000/2.0 1000 2 13 1600×1400×2400 900×2100 2150×2100 2150×3150 4600 1700 100
MST-P-MR1000/2.5 1000 2.5 13 1600×1400×2400 900×2100 2150×2100 2150×3150 4800 1800 125
MST-P-MR1250/1.0 1250 1 16 1950×1400×2400 1000×2100 2500×2100 2500×2100 4300 1500 50
MST-P-MR1250/1.5 1250 1.5 16 1950×1400×2400 1000×2100 2500×2100 2500×2100 4400 1500 75
MST-P-MR1250/1.75 1250 1.75 16 1950×1400×2400 1000×2100 2500×2100 2500×2100 4400 1500 85
MST-P-MR1250/2.0 1250 2 16 1950×1400×2400 1000×2100 2500×2100 2500×3150 4600 1700 100
MST-P-MR1250/2.5 1250 2.5 16 1950×1400×2400 1000×2100 2500×2100 2500×3150 4800 1800 125
MST-P-MR1600/1.0 1600 1 21 1950×1700×2400 1100×2100 2800×2200 2800×2200 4400 1500 50
MST-P-MR1600/1.5 1600 1.5 21 1950×1700×2400 1100×2100 2800×2200 2800×2200 4500 1600 75
MST-P-MR1600/1.75 1600 1.75 21 1950×1700×2400 1100×2100 2800×2200 2800×2200 4500 1600 85
MST-P-MR1600/2.0 1600 2 21 1950×1700×2400 1100×2100 2500×2450 2500×3500 4600 1700 100
MST-P-MR1600/2.5 1600 2.5 21 1950×1700×2400 1100×2100 2500×2450 2500×3500 4800 1800 125

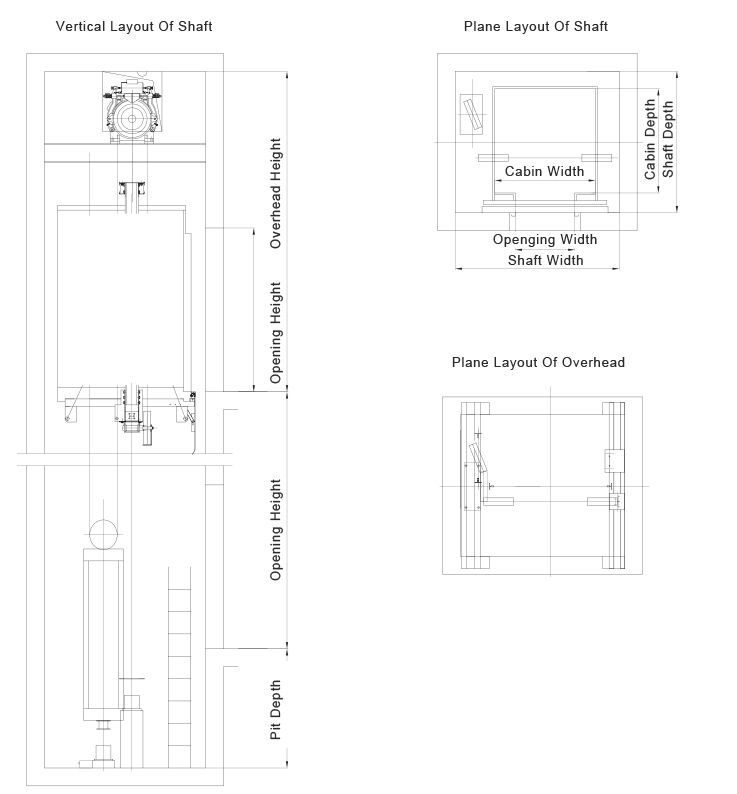

Passenger Elevator parameters (machine room less)



Model Load
Kg		 Speed
m/s		 Pers Car Size (mm)
CW×CD×HK		 Opening Size(mm)
PL×LH		 Shaft Size(mm)
SW×SD		 Overhead Hight H2
mm		 Pit Depth H1
mm		 Travelling Height H
mm
MST-P-MRL630/1.0 630 1 8 1250×1300×2400 800×2100 2100×1800 4300 1600 50
MST-P-MRL630/1.5 630 1.5 8 1250×1300×2400 800×2100 2100×1800 4500 1600 75
MST-P-MRL630/1.75 630 1.75 8 1250×1300×2400 800×2100 2100×1800 4600 1600 85
MST-P-MRL800/1.0 800 1 10 1350×1400×2400 800×2100 2200×1900 4300 1600 50
MST-P-MRL800/1.5 800 1.5 10 1350×1400×2400 800×2100 2200×1900 4500 1600 75
MST-P-MRL800/1.75 800 1.75 10 1350×1400×2400 800×2100 2200×1900 4600 1600 85
MST-P-MRL1000/1.0 1000 1 13 1600×1400×2400 900×2100 2450×1900 4300 1600 50
MST-P-MRL1000/1.5 1000 1.5 13 1600×1400×2400 900×2100 2450×1900 4500 1600 75
MST-P-MRL1000/1.75 1000 1.75 13 1600×1400×2400 900×2100 2450×1900 4600 1600 85
MST-P-MRL1250/1.0 1250 1 16 1750×1600×2400 1000×2100 2700×2000 4450 1600 50
MST-P-MRL1250/1.5 1250 1.5 16 1750×1600×2400 1000×2100 2700×2000 4650 1600 75
MST-P-MRL1250/1.75 1250 1.75 16 1750×1600×2400 1000×2100 2700×2000 4750 1600 85
MST-P-MRL1600/1.0 1600 1 21 1750×2000×2400 1000×2100 2700×2400 4500 1700 50
MST-P-MRL1600/1.5 1600 1.5 21 1750×2000×2400 1000×2100 2700×2400 4850 1800 75
MST-P-MRL1600/1.75 1600 1.75 21 1750×2000×2400 1000×2100 2700×2400 4900 1800 85

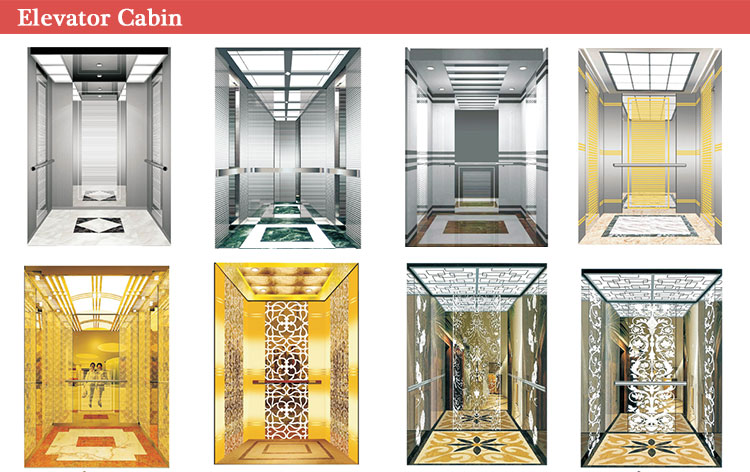

elevator cabin

elevator ceiling

elevator handrail

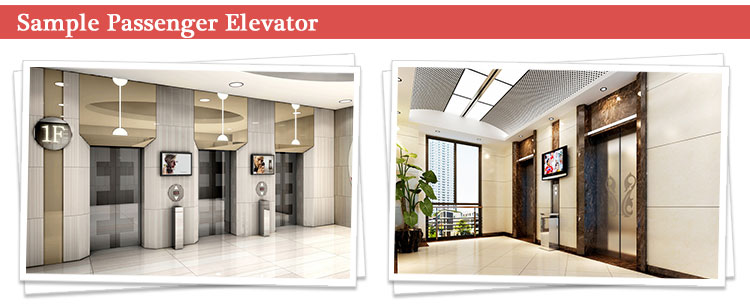

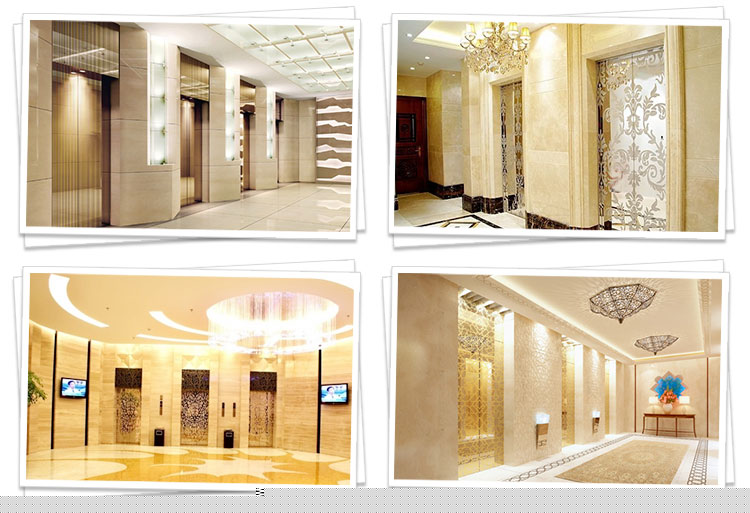

sample passenger elevator
